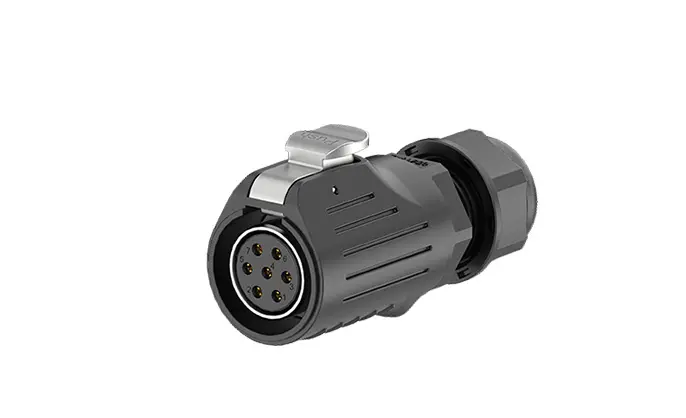

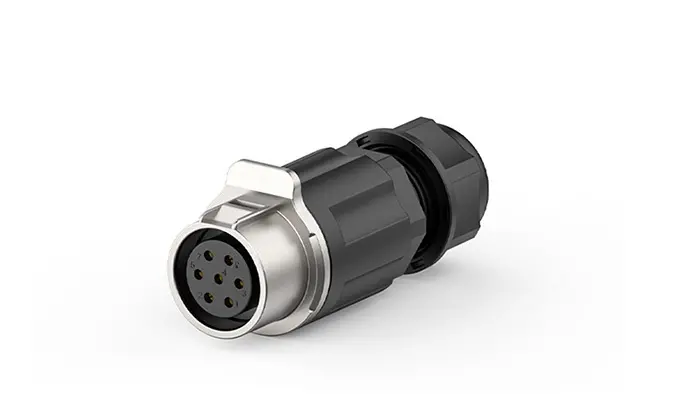

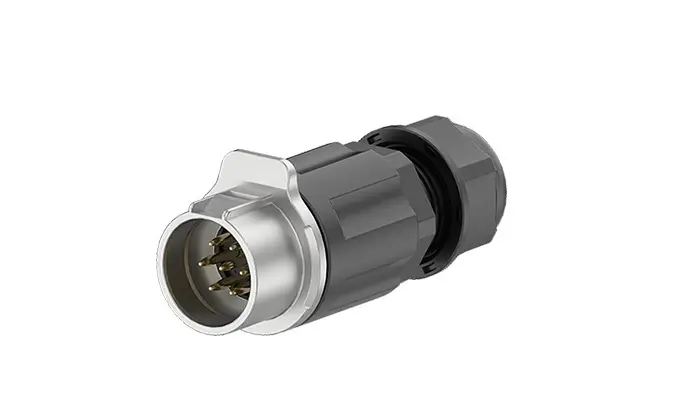

LP20 7 Pin Waterproof Connector Wire to Wire Screw Type 10A Power Panel Metal + Plastic

Article no.: ej0000409

Get A Quote

Wiring Mode	Screw Type
Installation Mode	Wire to Wire
Pins	7pins
Material	Metal + Plastic
Applicable Wire Gauge	1～1.5mm²
Waterproof Ring	12mm
Protection Level	IP67

LP20 7 Pin Waterproof Connector Wire to Wire Screw Type 10A Power Panel Metal + Plastic

Product	LP12	LP16	LP20	LP24	LP28
Number of Pins	2-8P	2-9P	2-5/7/9/12P	2-24P	2-6/8P
Rated Current	5/3A	10/5A	20/10/5A	30/10/5A	35/30/15A
Rated Voltage	125/100V	500/250V	500/250V	500/400/250V	500/400/300V
Wire Section	0.34-0.5m㎡	1-1.5/03.4-0.75m㎡	2.5-4/1-1.5/0.34-0.75m㎡	4/1.5/0.5m㎡	16/10/6/4m㎡
Temperature Range	-40℃ ~ +105℃
Cable Diameter	Φ3-Φ6mm	Φ4-Φ9mm	Φ8-Φ12mm	Φ9.5-Φ14mm	Φ13-Φ20.5mm
