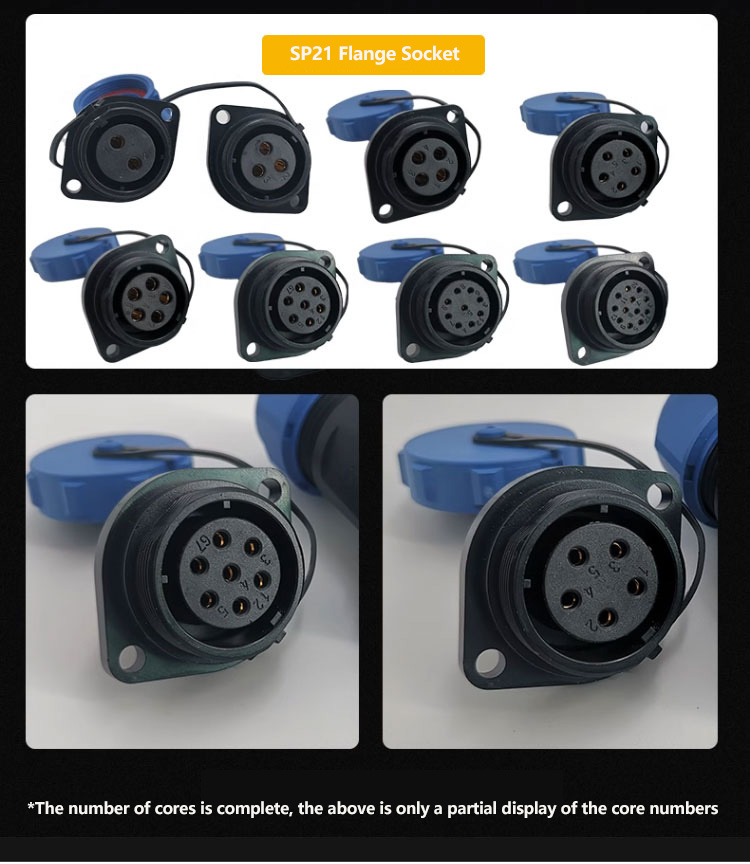

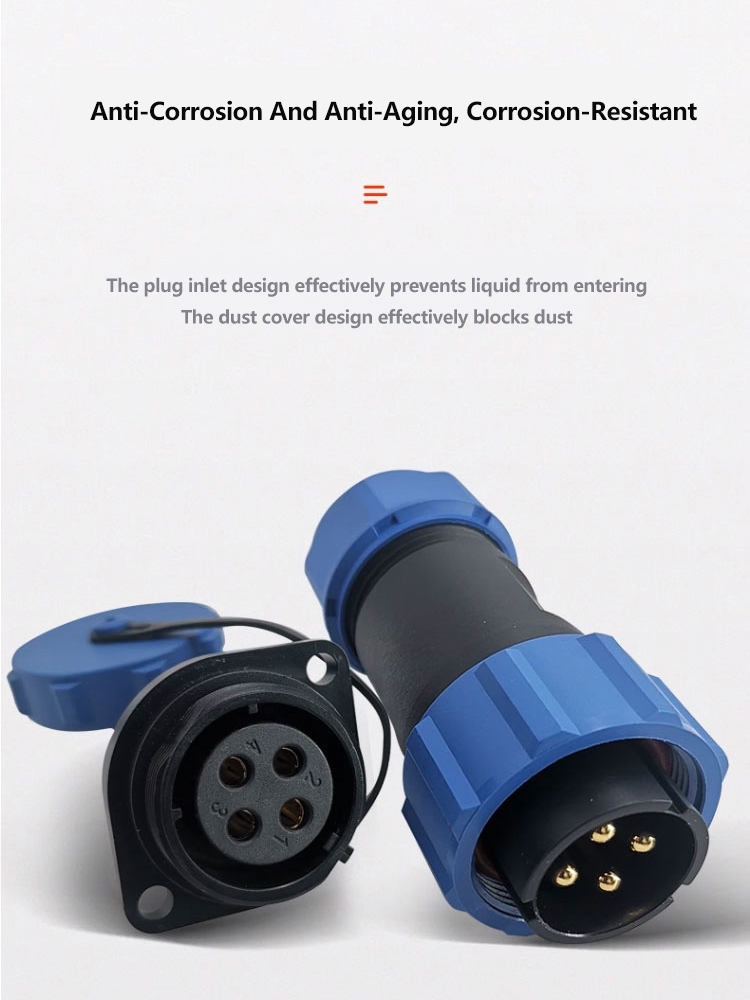

SP21 12 Pin Circular Plug Socket Flange Outdoor Cable Connector IP68

Article no.: ej0000634

Get A Quote

Wiring Mode	Solder Type
Installation Mode	Flange Style
Pins	12pin
Material	All Plastic
Protection Level	IP68

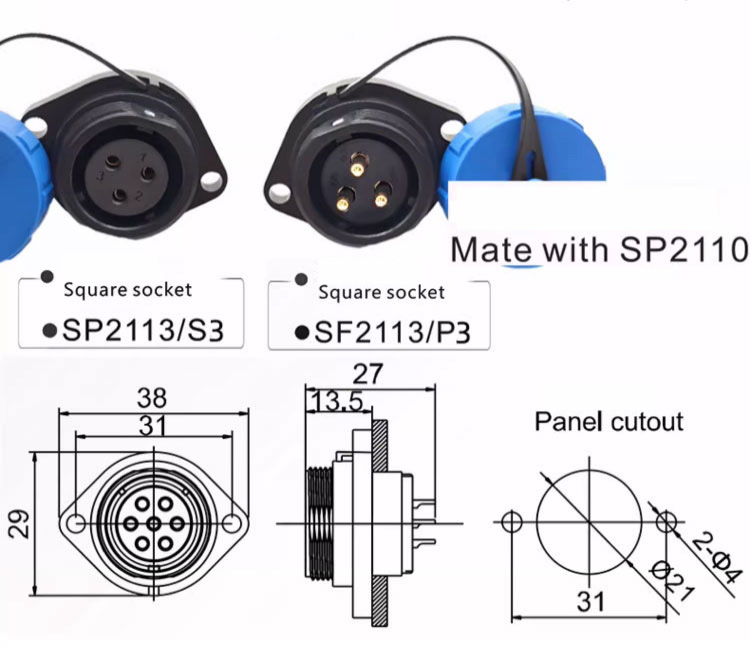

Part No	SP2113/S12-SP2110/P12-SP2113/S12-SP2110/P12
Cable Outer Diameter Range	7-12mm
Insulation Resistance	2000MΩ

SP21 12 Pin Circular Plug Socket Flange Outdoor Cable Connector IP68

SP21 12 Pin Circular Plug Socket Flange Outdoor Cable Connector IP68

SP21 12 Pin Circular Plug Socket Flange Outdoor Cable Connector IP68

SP21 12 Pin Circular Plug Socket Flange Outdoor Cable Connector IP68

SP21 12 Pin Circular Plug Socket Flange Outdoor Cable Connector IP68

SP21 12 Pin Circular Plug Socket Flange Outdoor Cable Connector IP68

SP21 12 Pin Circular Plug Socket Flange Outdoor Cable Connector IP68

Pin	2	3	4	5A
Rated Current(A)	30A	30A	30A	30A
Contact Diameter	Φ3.0*2	Φ3.0*3	Φ3.0*4	Φ3.0*2
Rated Voltage(ac.v)	500V	500V	500V	500V
Withstand Voltage(AC,V)1 min	1500V	1500V	1500V	1500V
Contact Resistance mΩ	1	1	1	1
Welding Wire Gauge mm²/AWG	≤4.17/11	≤4.17/11	≤4.17/11	≤4.17/11

Pin	5B	5C	7	9	12
Rated Current(A)	5A/30A	15A	15A	5A	5A
Contact Diameter	Φ3.02/Φ1.03	Φ2.0*5	Φ2.0*5	Φ1.0*9	Φ1.0*12
Rated Voltage(ac.v)	500V	500V	500V	500V	400V
Withstand Voltage(AC,V)1 min	1500V	1500V	1500V	1500V	1200V
Contact Resistance mΩ	1	2.5	2.5	5	5
Welding Wire Gauge mm²/AWG	≤4.17/11-≤0.785/18	≤2/14	≤2/14	≤0.785/18	≤0.785/18
